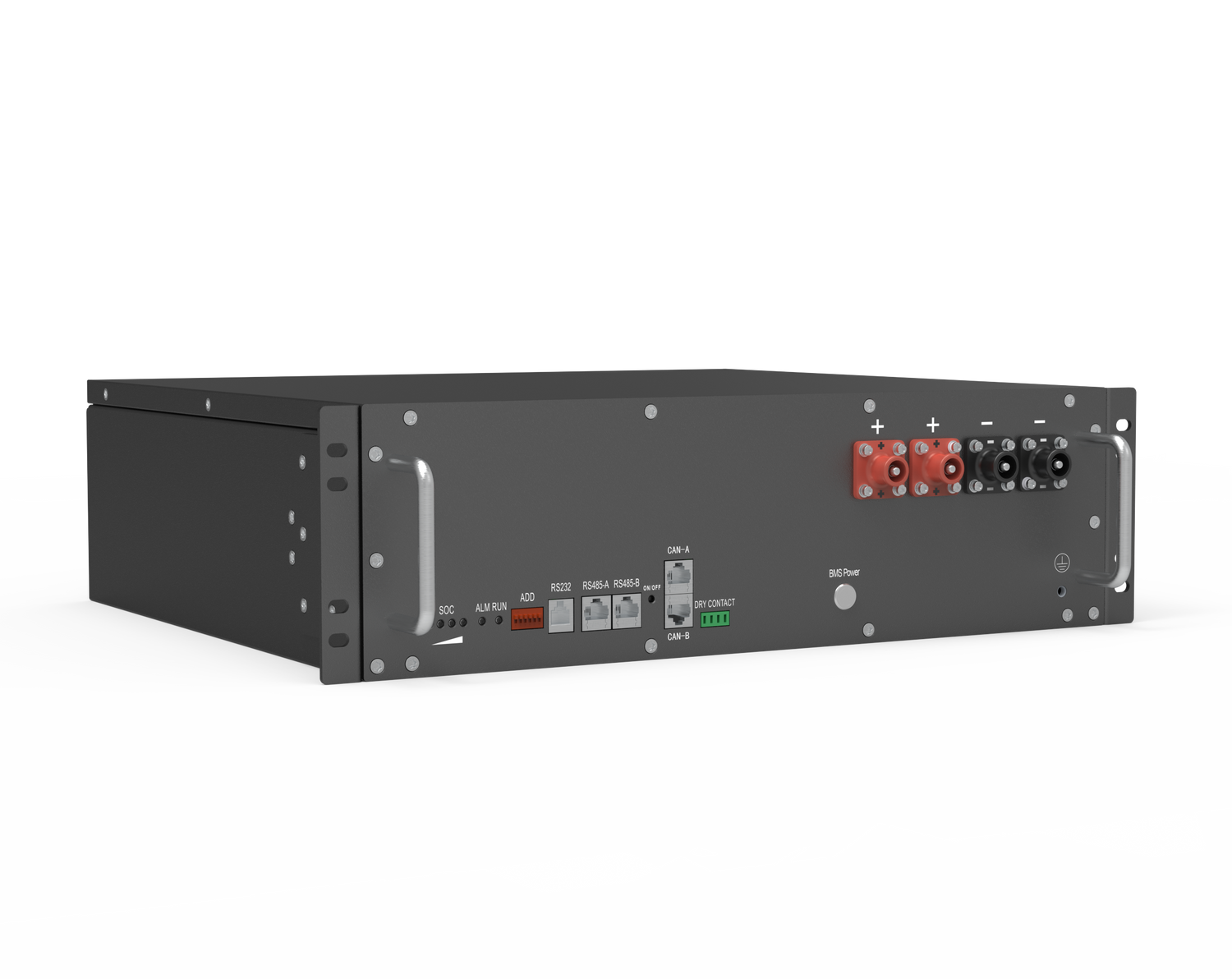

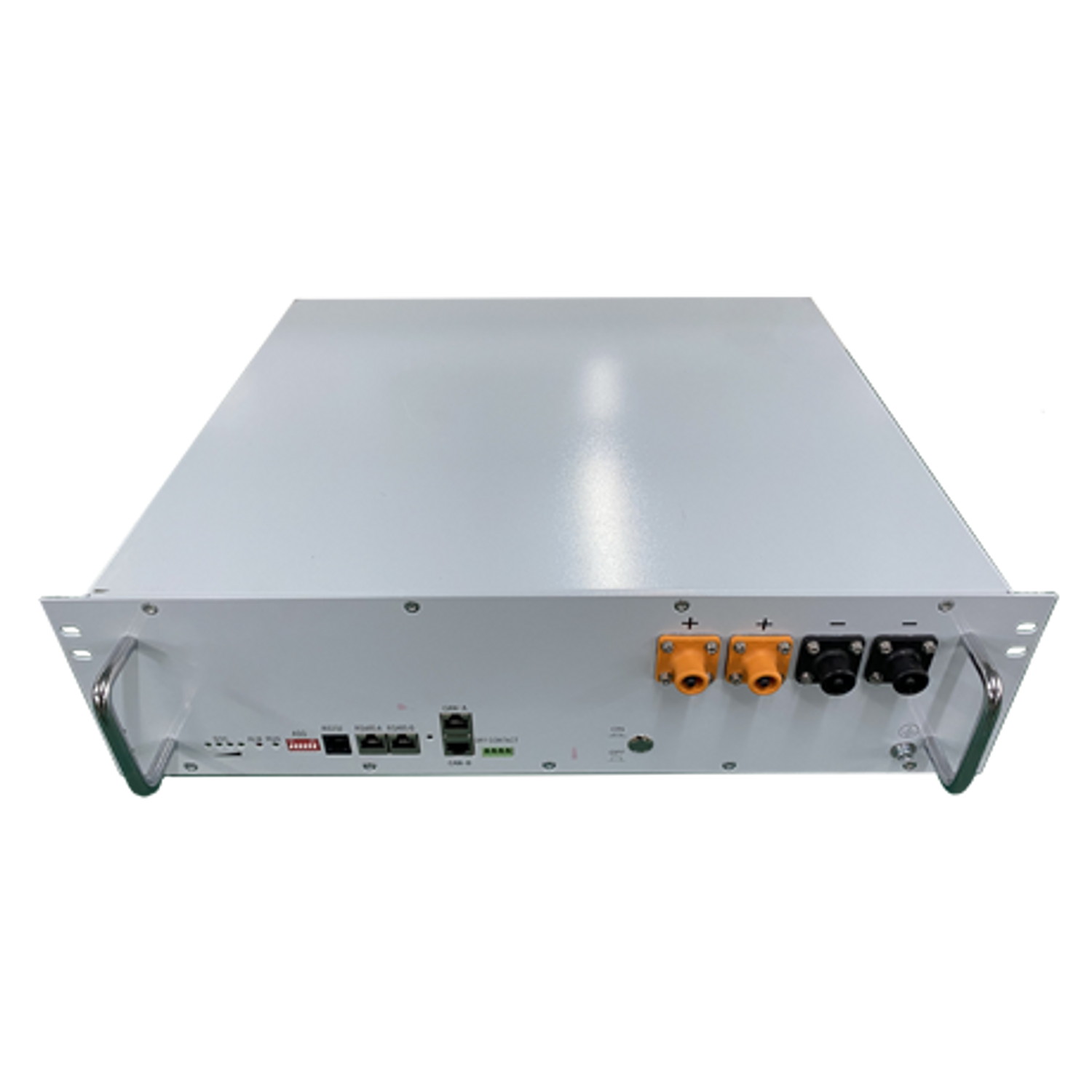

RESS ePower SA Series 48V/51.2V/100Ah

The ACE residential energy storage system (RESS) ePower series battery packs can work with a solar energy storage system.

















The RESS-Rack 48V/51.2V100Ah solar power backup battery belongs to ACE Group's RESS ePower series. The ACE residential energy storage system (RESS) ePower series battery packs can work with a solar energy storage system and optimize system performance, absorb excessive PV electricity and supply power for residences whenever needed. This product is the ideal choice for solar power backup systems for homes and it can be wall-mounted or floor-mounted and allows for parallel connection.



ACE Battery is an expert in battery storage for home solar systems. If you want to buy batteries for home energy storage, welcome to contact us.



Features



Up to 10 years of service life and more than 4400 cycles Compact modular design gives the end customers the choice of capacity Deliver up to 5KW with a single module Product certification CE, IEC 62619, UN 38.3, RoHS
Compatible with most of the available Hybrid inverters Simple buckle fixing minimizes the installation time and cost Intelligent battery management system inside Multiple safety fault protection settings to fit transportation mode, sleep mode and permanent failure mode
  • Residential application

  • Small commercial or industrial areas

  • Telecom base stations

  • Micro off-grid systems



Model RESS-BM-048100-L0 RESS-BM-051100-L0
Rated Voltage [V] 48 51.2
Rated Capacity [Ah] 100 100
Total Energy [KWh] 4.8 5.12
Charge Voltage [V] 54 57.6
Max. Charge Current [A] 100 100
Recommend Charge Current [A] 50 50
Dimensions [L*W*H, mm] 442*400*130 442*400*130
Weight [Kg] 36 38
Cycle >4400cycles
IP Grade 20
Charge Operating Temperature 0°C~50°C *
Discharge Operating Temperature -10°C~50°C **
Relative Humidity 0%RH-95%RH
Communication Port RS485, RS232, CAN
Certif ication CE, IEC62619, UN38.3, RoHS, UL1973



* Derating occure between-10°C~10°C.

** Derating occure between-10°C~0°C, 45°C~55°C.

Product Description

The RESS-Rack 48V/51.2V100Ah solar power backup battery belongs to ACE Group's RESS ePower series. The ACE residential energy storage system (RESS) ePower series battery packs can work with a solar energy storage system and optimize system performance, absorb excessive PV electricity and supply power for residences whenever needed. This product is the ideal choice for solar power backup systems for homes and it can be wall-mounted or floor-mounted and allows for parallel connection.



ACE Battery is an expert in battery storage for home solar systems. If you want to buy batteries for home energy storage, welcome to contact us.



Features



Up to 10 years of service life and more than 4400 cycles Compact modular design gives the end customers the choice of capacity Deliver up to 5KW with a single module Product certification CE, IEC 62619, UN 38.3, RoHS
Compatible with most of the available Hybrid inverters Simple buckle fixing minimizes the installation time and cost Intelligent battery management system inside Multiple safety fault protection settings to fit transportation mode, sleep mode and permanent failure mode
Product Applications
  • Residential application

  • Small commercial or industrial areas

  • Telecom base stations

  • Micro off-grid systems

Product Specification



Model RESS-BM-048100-L0 RESS-BM-051100-L0
Rated Voltage [V] 48 51.2
Rated Capacity [Ah] 100 100
Total Energy [KWh] 4.8 5.12
Charge Voltage [V] 54 57.6
Max. Charge Current [A] 100 100
Recommend Charge Current [A] 50 50
Dimensions [L*W*H, mm] 442*400*130 442*400*130
Weight [Kg] 36 38
Cycle >4400cycles
IP Grade 20
Charge Operating Temperature 0°C~50°C *
Discharge Operating Temperature -10°C~50°C **
Relative Humidity 0%RH-95%RH
Communication Port RS485, RS232, CAN
Certif ication CE, IEC62619, UN38.3, RoHS, UL1973



* Derating occure between-10°C~10°C.

** Derating occure between-10°C~0°C, 45°C~55°C.
